SD-F001 Four-axis CNC automatic paper pipe cutter paper core cutting machine

Product Parameters

Detailed Photos

Certifications

Company Profile

GuangDong ShengDe Intelligent Equipment Technology Co., Ltd.is a professional electrical tape, cloth tape, masking tape, bopp tape, floor tape, duct tape, automatic paper cutter and other outer packaging automation equipment, sales, after-sales service for One enterprise.
The company takes “fast”, “reliable” and “stable” as its core values, and provides many customers with good performance and reliable products and services. This equipment has been used in the adhesive tape packaging industry and has won praise and trust from customers.Our products have been sold all over the world. ShengDe has been serving every new and old customer for a long time in line with the attitude of “quality assurance, honest service, timely delivery”.
Here, thank new and old customers for their long-term support, because of your attention we will be more focused.

Packaging & Shipping

FAQ

Q1: Are you a factory or a trading company?
A1: ShangDe is the manufacturer & trading company,extablished in 2015.

Q2: Whether customized services are available?
A2:We provide customized services, including ODM, OEM.

Q3: What is your machine guarantee?
A3: Usually the guarantee period is for 1 year, and we will keep contact with our customers for after-sales service. We’re aim to produce better machines and let our customers be satisfied.(Our employees come to your company to assist at a mutually negotiable cost)

Q4:How to install the machine for us?
A4:We can instruct the installation by vedio, email or picture, and for large project, we can also arrange our technical workers
to help you to install the machine in your country.(Our employees come to your company to assist at a mutually negotiable cost)

Q5: If we have problems when using your machine, what should we do?
A5: If you have any problem, just contact us, we will help you to solve it,and we will provide remote guidance by email, phone call, video, pictures, etc. And if necesary, we will arrange our engineers to help you in your country. (Our employees come to your company to assist at a mutually negotiable cost)

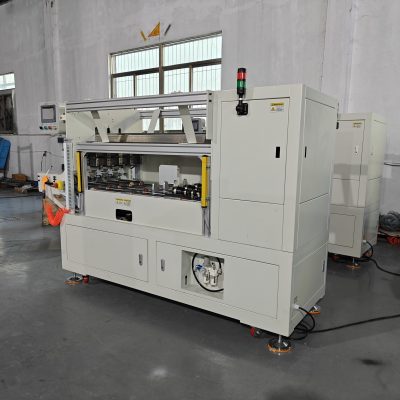

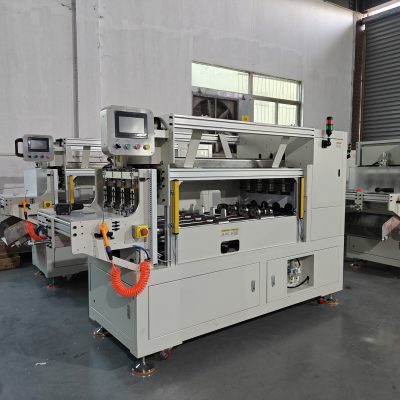

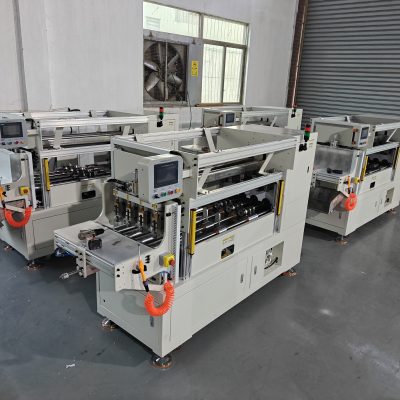

What the SD-F001 Does

The SD-F001 is a four-axis CNC paper core cutter. It cuts paper tubes to the exact length your tape line needs, automatically. It does not cut tape â it prepares the core that tape is wound onto. Every finished roll starts with a straight, round core, and the SD-F001 is the machine that makes that core consistent from the first roll to the ten-thousandth.

Where It Fits on the Line

The paper core is the first component a tape roll is built on. The SD-F001 runs at the very front of the finishing line, feeding clean cores into everything downstream:

SD-F001 (cut paper cores) â rewinding and slitting â roll packaging (SD-60SS, SD-77HM, SD-920HM, SD-TB1020) â column sleeve shrink (SD-1060 + SD-4522) â labeling â case erecting and sealing â palletizing.

The SD-F001 also works as the automatic core-loading station in front of a slitting machine. On a two-shift line, switching arbors costs ten minutes or more each time the spec changes. Cutting cores to length ahead of the run, automatically, takes that wait out of the schedule.

Specifications

Item	SD-F001
Core inner diameter	76 mm standard (38 mm cores are not supported)
Wall thickness	1â9 mm, adjustable
Cut length	10â90 mm standard, customizable
Axes	Four-axis CNC
Changeover	Touch-screen length input, about 1 minute to switch spec
Short core	Cuts 12 mm short cores with a round, clean face
Safety	Fully enclosed guard + light curtain
Monitoring	Wireless remote APP monitoring and system upgrade
IP protection	National patent granted
Track record	On the market since 2022, 100+ units sold per year

Applications

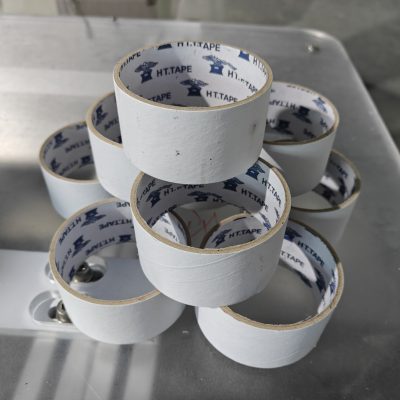

Paper cores for electrical tape, cloth tape, masking tape, BOPP tape, and other industrial tapes wound on a 76 mm mandrel. If your tape line runs 76 mm ID cores, the SD-F001 supplies them in length after length. It is built for the core only â finished tape is cut to width downstream by the slitting machine, not by this cutter.

SD-F001 vs Cutting Cores by Hand

A saw and an operator can cut a core, but the result drifts. Length varies roll to roll, the ends are not always square, and a person is tied to the saw for the whole shift. The SD-F001 removes those problems:

Length is set on the touch screen â no measuring, no marking, no re-cutting.

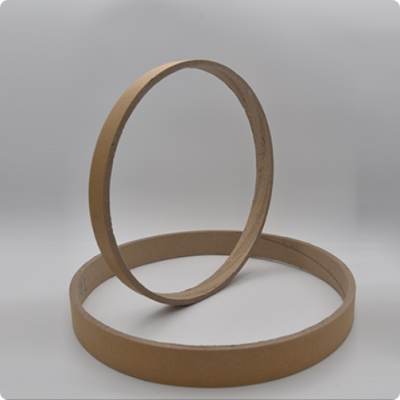

Even a 12 mm short core comes off with a round, clean face, so it seats on the winder without runout.
Material head and tail are excluded automatically; the machine shuts down on fault alarm instead of pushing a bad core downstream.
Wireless remote monitoring lets you check run status and push firmware without a site visit.

Before You Specify

CE certification and light-curtain guarding are standard. Both are required for export lines and non-negotiable.
Video-guided remote installation: the machine is set up the same day, with 1â3 days of commissioning before full production. No costly on-site trip.
A Malaysian customer reported 20% more output, 30% lower labor cost, and 19% fewer defects after replacing their own hand packing (measured against their manual baseline, not against another machine).

Common Questions

Can the SD-F001 cut 38 mm cores?
No. The standard mandrel is 76 mm. For other core sizes, tell us your spec and we will size the loader.

Does it cut finished tape?
No. It cuts paper cores only. Tape is slit to width by the slitting machine that runs after the cores are loaded.

How long does a length change take?
Input the new length on the touch screen â about one minute, no tool change.

How long does installation take?
Same-day setup, 1â3 days of commissioning over video. Send us your core ID, wall thickness, and cut length and we will confirm the fit.
